Passchendaele Memorial and Garden
Team: Boffa Miskel, McRae
Location: Zonnebeke, Belgium

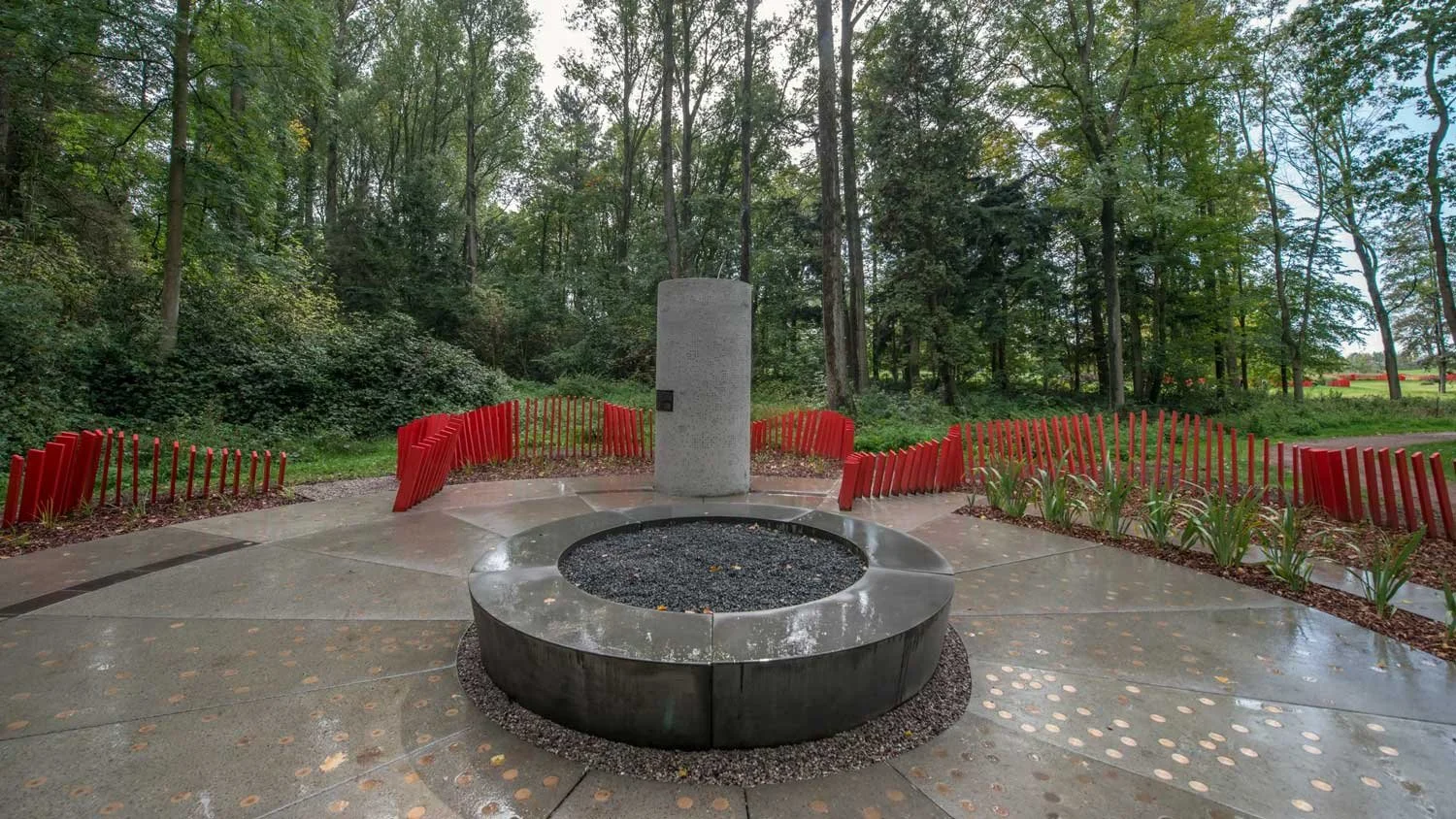

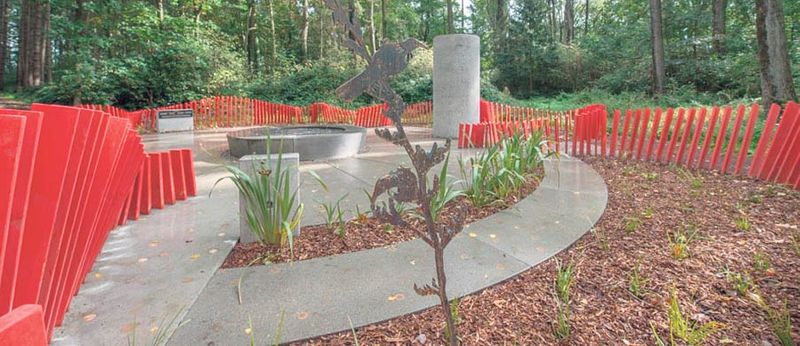

Jagas Paving had the privilege of creating the New Zealand Memorial & Garden at the Memorial Museum Passchendaele 1917 in Zonnebeke, Belgium. Jagas made the components which were assembled in a leafy forest on what 100 years ago was the resting place for 846 New Zealand soldiers killed in a single day of conflict.
The staff spent long hours pouring concrete and designing moulds to make all the elements of the memorial. Jagas was approached because it had done work in the past for landscape consultants Boffa Miskell, which won a design competition for the garden. For the pavers at the base of the design, bronze inlays representing the fallen troops were glued down and covered in hard mix. The solution was set in two days when the 1.2-tonne pavers were lifted and sandblasted to reveal the Maungaturoto aggregate concrete mix.

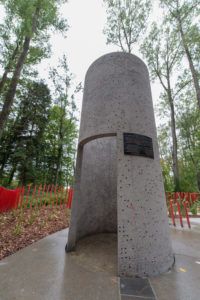

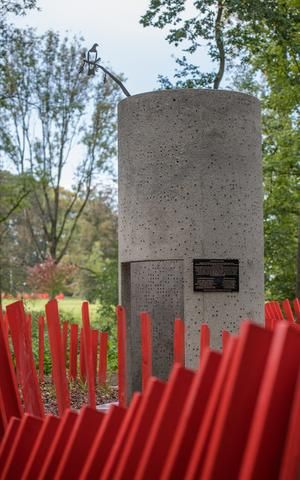

Jagas team went to Belgium to supervise the installation. It was an emotional contract for the team, given that it was designed and made in honour of young men who lost their lives in the name of New Zealand. The garden took the firm about eight months to make, with the most challenging item being designer Cathy Challinor’s 3m tall memory column, a concrete cylinder pierced by 2700 tiny holes. The total represented the number of casualties at the end of the day’s fighting on 12 October 1917 when Allied forces suffered a punishing defeat at the hands of Germany. “It was a problem waiting to be solved. It was scary, but the question was working out how to do it.”

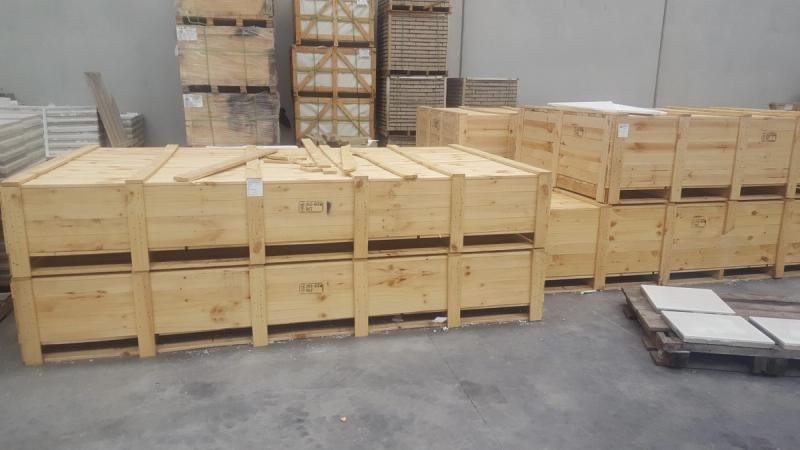

Making the column involved using two precision-cut metal cylinders with 10mm plastic rods filling 2700 holes. Concrete was poured down between the cylinders to create the column. The job was done carefully as Jagas staff had to keep turning the rods to prevent them from setting in the concrete. Once the mixture had cured, the rods and cylinders were removed, leaving the finished column, which was shipped in a special cradle to protect it on the six-week voyage to Antwerp.
